Dear visitors of our website

stadium-tv,

this website is intended for all organizers of an event where the venue has to be technically temporarily upgraded. A so-called overlay system. The name Stadium-TV of our service website of the incast GmbH comes, since 2008 we realize mostly large sports events in stadiums.


Stadium TV generally refers to the TV program produced by a stage / OB van for the respective event. It can also be called Venue TV, Hospitality TV, Media TV, etc. The venue does not matter. In content, it can be a TV program specially produced for the event or the so-called Worldfeed, which is broadcast as a program. When we speak here of broadcasting, this applies to a closed circle of TVs at the venue.


We are specialized to distribute the TV Progamm in best quality to the TV Screens. Depending on the existing infrastructure of the venue, we decide with the customer which solution is the most favorable for him. It is usually necessary to implement different transmission paths parallel. The following transmission paths are possible: Distribution as HD SDI signal, DVB-C, analog distribution, DVB-T, IPTV, HD-SDI over LAN infrastructure or HD-SDI over WIFI.


Decisive is also the position of the TV screens on which the live program is running since there should be no or a minimal delay, for example, at the TVs in the event room. A further decision point is the number of TV channels to be transmitted.




If you do not have a special TV program, we can do this for you technically, graphically and with the highest quality.





Here is a brief overview of the advantages and disadvantages of the most important signal distribution types. Please click on logo




Advantages and disadvantages


Random Name

advantages

many TV channels can be transmitted

multiple languages ​​can be transferred to each channeln

easy distribution since it can be split by passive elements

disadvantage

Signal is encoded by the time delayed about 180ms

Advantages and disadvantages


Random Name

advantages

many TV channels can be transmitted

meist kann das bestehende LAN Netzwerk verwendet werden. Dies ist gerade bei Bauten sinnvoll wo es schwierig ist zu verkabel

Kontrolle über die Middleware welcher TV welches Program ausstrahlt

für jeden TV eigene Layouts möglich

Nachteile

signal wird durchs encodieren zeitlich verzögert ca 180ms

man ist angewiesen auf die lokale IT

Advantages and disadvantages


Random Name

Vorteile

unkompremiertes HD SDI Videosignal

Nachteile

nur ein Kanal pro Kabel möglich

bei normalen TVs meist Wandler notwendig

bei Verteilung sogenannte aktive reclocker notwendig


Standartsysteme / Produktübersicht

bitte jeweils das Logo anklicken um mehr zu erfahren

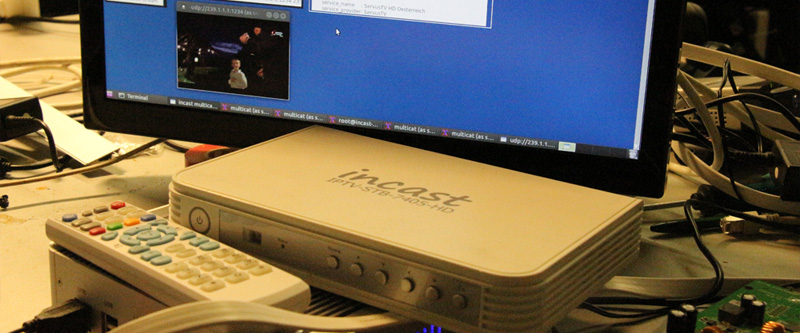

IPTV System

Systembeschreibung

IPTV Middleware Server Linux

bis zu 650 IPTV HD STBs

Kontrollsoftware

Gruppierung der STBs möglich

Konfiguration eigener Programmpakete

STBs umschaltbar über Software

Problemlose integration in bestehende IPTV Systeme

optimal um ein bestehendes IPTV Netzwerk zu erweitern


IPTV System mit Encodern

Systembeschreibung

Ausstattung wie System I

plus Encoder mit Multicast Ausgang

pro Encoder bis zu 4 HD Kanäle möglich

plus Multicast Kontrollsoftware

Encoder unterstützen IGMP

Encoder Software Kontroll Modul


IPTV Multicastumsetzer Multicast Umsetzer

Multicastumsetzer

Empfänger/Sender für bis zu 5 Multicast streams

zwei Netzwerkkarten zur Umsetzung in ein anderes VLAN

Address und/oder Port konvertierung

kein delay

Anwendung: wenn zwei VLAN physikalisch getrennt zugang zu den streams haben soll

Kontroll und Vorschau Funktion




IPTV Air/ Wifi

Systembeschreibung

Aufbau wie System II

plus IPTV Air Sender

plus IPTV Air Empfänger

max 3 TV Kanäle pro Sender

besonders geeignet um scheinbar unüberwindbare Hindrnisse zu überbrücken


IPTV DVB-C Umsetzer

Systembeschreibung

wandeln sie die IP Streams direkt um in DVB-C

bis zu 7 Streams in 2 Karrier umwandeln

Bandbreite pro Karrier 37 Mbit

Einfache Bedienung über Webinterface


IPTV Recorder

Systembeschreibung

Systemplattform Windows/Linux

gleichzeitige Aufzeichnung bis zu 8 Multicaststreams

Stückelung in Zeitintervalle möglich

als Speichermedium Micro DDP mit Cloudfunktion möglich

automatisierte Verteilung der Files




CATV I - Stdium TV

Systembeschreibung

HD SDI Input und Monitoring je nach Anzahl der HD Kanäle

Matrix zur Umschaltung zwischen den Kanälen

Video Mischer

HD Encoder / Multiplexer und QAM Modulator

CATV Preview /HF Combiner und Verstärker

Output DVB-C / DVB-T oder ISDBT

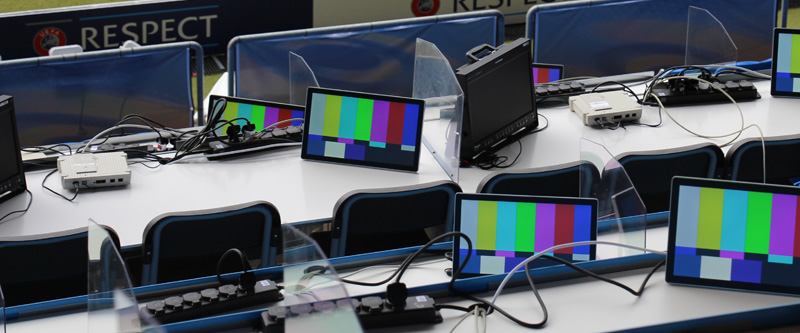

CATV II - Mediatribüne

Systembeschreibung

HD SDI Input und Monitoring je nach Anzahl der HD Kanäle

High Speed HD Encoder (delay < 180ms)

CATV Preview /HF Combiner und Verstärker

Output DVB-C / DVB-T oder ISDBT


Venue TV

Systembeschreibung

Grafikserver

Playoutserver

HD SDI Matrix

HD Encoder mit IPTV und DVB-C Output

HD SDI Input Monitoring




Web Streaming

Systembeschreibung

Streaming Server

HD SDI Input

RTMP UDP RTP Output

Multilanguage - verschiedene Tonspuren möglich (Sprachauswahl)

web-compatible platforms like: Adobe Flashplayer, iOS (iPhone, iPad, ...), Android (Smartphones und Tablets), Windows Phone, Amazon Kindle (Fire HD, ...), BlackBerry (Z10 BB10, Bold, ...), IPTV / Set-Top-Boxen / VLC Player, Consoles: PS3, PS4, PS4 Pro, XBOX ONE

einbindung in ihre Website

Kompatible auch für youtube, Facebook usw.

Recoding des Live Streams und Bereitstellung als VoD


Audio Signage

Systembeschreibung

Audioverbreitung über Wifi

geben sie ihren TV Screens einen Ton

Multilanguage möglich

Low - latency, high - quality audio streams


Remote Interpretetion

Systembeschreibung

zentralisiertes Übersetzersystem

HD SDI Monitoring und Verbreitungseinheit

Audio Ident Server

Audio und Video Backup über VLAN

12 Sprecherkabinen

24/7 Notdienst

Sie brauchen Hilfe? Egal ob Dienstleiter, Techniker, Kunde oder Austragungsort. Wir helfen gerne. Egal ob sie Hardware brauchen oder technische Fragen haben. Wir sind für sie innerhalb von 24 Stunden weltweit vor Ort. Wenn ihr interesse habt unserem weltweiten Support Team beizutreten meldet euch bei uns. michael@incast.de skype: michischr
Jede Anfrage geht bei unserem support ticket system ein und wird bearbeitet. Ob bereits Kunde oder Neukunde. Im Vordergrund bei uns steht die Lösung des Problems und eine erfolgreiche Veranstaltung. Unter Partner und Rferenzen finden sie alle Support Mitglieder und deren Kontaktdaten.


Ihr Kontakt zu uns

incast GmbH

incast GmbH

14943 Luckenwalde, Germany
http://www.incast.de

kleine Weinbergstr 7

Telefon: +49 (0)3371 40 39 577

Email: michael @ incast.de



Referenzen und Partner

Referenzen

- All UEFA Champions-, Europa-League finals and Super Cups since 2013
- UEFA EURO 2016 France

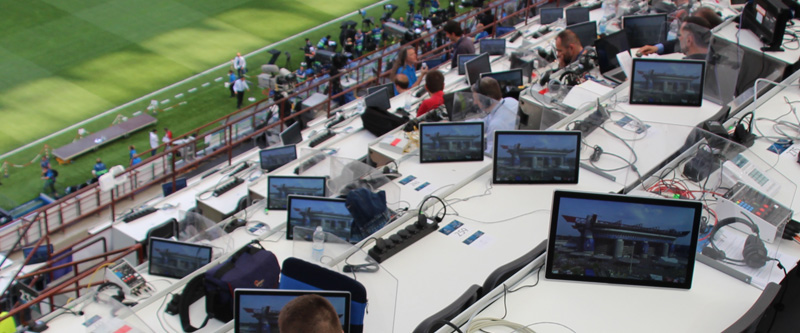

- Planning and supervision of the RF Cabling for all 12 Media Tribunes
- CATV 2 high speed encoding for the Media Tribune at all 10 Venues
- CATV 1 distribution for the Media and Hospitality in both DVB-C and IPTV
- Production of 3 all-venue-wide TV Channels over VLAN (Multicast distribution)
- Setup and operations of the remote interpretation centre at the IBC
- Provision and installation of 12 interpreter booths
- Signal distribution, audio de-/embedding for the remote interpretation system
- Recording of all Press Conferences
- Production of the IBC Info Channel
- CATV system for ZDF compound at the G7 summit Garmisch/Elmau 2015
- Encoding and DVB-C modulation of 10 TV HD Channels
- RF Cabling and distribution

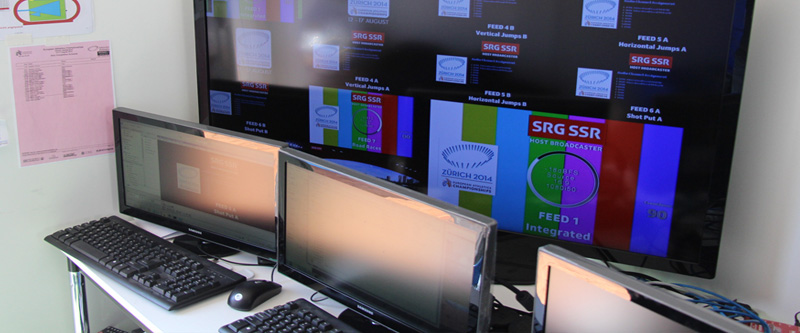

- 2014 European Athletics Championships Zürich
- Recording all HD Feeds for the Jury of appeal
- Installation and operations of an IPTV system with 12 HD Channels
- LAN cabling for Internet and CIS Information System on the Media Tribune
- RF cabling on the Media Tribune and in the Media Centre
- FIFA World Cup 2014 Brazil
- Planning and supervision of the RF Cabling for all 12 Media Tribunes
- CATV 2 high speed encoding for the Media Tribune at all 12 Venues
- CATV 1 distribution for the Media and Hospitality in both ISDB-T and IPTV
- Production of 3 all-venue-wide TV Channels over VLAN (Multicast distribution)
- Setup and operations of the remote interpretation centre at the IBC
- Provision and installation of 12 interpreter booths
- Signal distribution, audio de-/embedding for the remote interpretation system
- Streaming 2 TV Channels to the FIFA Media portal in two languages
- FIFA Confederations Cup 2013 Brazil (Team size 8 technicians)
- CATV 1 distribution - Production of 2 HD TV Channels Media TV and Stadium TV
- Setup and operation the remote interpretation system
- Signal distribution to all venues via Multicast, audio de-/embedding
- UEFA Euro 2012 Ukraine/Poland
- CATV 2 setup DVB-C and IPTV in all 8 Venues
- Production of 2 HD TV Channels Media TV and Stadium TV
- Recording of all Media Briefings and Press Conferences
- Production of the IBC Info Channel
- UEFA EURO 2012 final draw in Kiev (Team size 6 technicians)
- Production of 1 TV Channels Media TV
- Installing 1GBit IPTV Network with our own IPTV STBs and middleware
- LAN and Power distribution in the Media Centre
- Recording the event
- UEFA EURO 2012 qualifying draw in Warsaw
- Production of 1 TV Channels Media TV
- Encoding and DVB-C modulation
- Power and LAN Distribution for the Media Centre and UEFA Offices
- FIFA Women World Cup 2011 Germany
- Production of Media TV and Stadium TV
- Encoding and DVB-C modulation in all Venues
- FIFA Women U-20 World Cup 2010 Germany
- Production of Media TV and Stadium TV
- Encoding and DVB-C modulation in all Venues
- FIFA World Cup 2010 South Africa
- Setup remote interpretation system
- CATV 1 and 2 head-ends and distribution
- Production of two TV Channels Media TV and Stadium TV
- Upgrade of three stadia with 150 -300 IPTV STBs and our own middleware
- IAAF World Athletics Championships 2009 Berlin
- Production of 12 Channel CATV System. 2 extra Channels for Jury of Appeal
- Recording of all Channels
- RF Cabling and distribution for 1000 Journalists
- RF Cabling and distribution for the TV Compound
- FIFA Confederations Cup 2009 South Africa
- Production of 2 TV Channels Media TV and Stadium TV for all 4 Venues,
- SD encoding and modulation to DVB-C
- UEFA Euro 2008 Austria/Switzerland
- Production of 2 TV Channels Media TV and Stadium TV for all 8 Venues,
- Recording of all matches, data transfer to all venues via bit-torrent
